Priory Access 4G+ VoLTE SIM Card Intercom for Electric Gates & Doors

4G Advanced Pro or 4G+ is required for 4G voice calls on all UK networks. The majority of 4G intercoms fall back to 2G or 3G for voice calls and SMS on Vodafone and will generally never be as reliable as a modern 4G+ intercom.

Priory Access are 4G and 5G electronics experts and designed the intercom without compromise specifically as a mobile phone based intercom.

  • Highly Aesthetic Design
  • Highest Quality Materials
  • VoLTE/IMS Tested on UK and Ireland Networks
  • Internal Aerial
  • Wire Free Internals
  • Solid Void-Free Enclosure
  • Rel.13 LTE for 4G calling

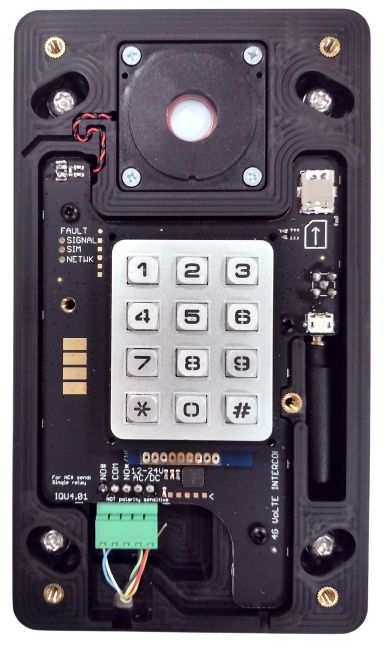

The internal circuit board is fully integrated with the aerial, microphone and keypad all part of the main PCB assembly. The replaceable front trim is secured to the intercom using magnets creating an attractive screw-less finish.

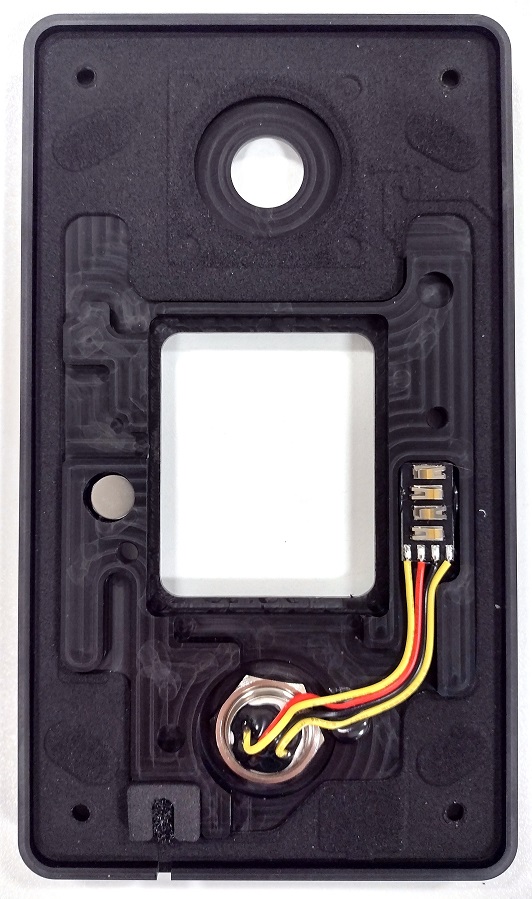

The intercom has a void free design where there is minimal empty space within the enclosure creating an extremely strong finished product. Typically intercoms are more like empty boxes which are vulnerable to being crushed when impacted. The solid void free design is extremely robust.


Easy Installation

Cellular technology is a complicated business but we've made installation and programming easy with our voice assistance, simple SMS commands and intuitive app. To simplify the physical installation, all Priory Access intercoms feature an internal aerial to avoid additional cabling and brackets. Keeping the aerial within the main unit also gives the absolute best possible radio performance as external aerials will attenuate the signal.

  • Internal Aerial
  • 12-24V AC/DC Power
  • Voice Assistance
  • 2 Output Relays
  • Weatherproof Enclosure
  • QR Code App Setup
  • LTE Cat1 bis Chipset

Priory Access intercoms create a full access control system programmable by SMS or via the iot-portal.com app.

  • 1000 Phone User Memory
  • Dial-to-Open
  • 7-day Timer for Regular Opening
  • SMS Control and Programming
  • Portal Access
  • Up to 1000 codes Keypad Access
  • Keypad programming by SMS & Online
  • Full & Automatic Remote Firmware Updates



Priory Access 4G intercoms allow you to speak to visitors at your property no matter where you are in the world. Using the latest VoLTE 4G audio codecs the audio quality of the calls is superb.
When connected to an electric gate or door, simply pressing a key on your phone during the call grants access to your visitor. You can additionally add up to 1000 phone numbers to the intercom for dial-to-open access control.

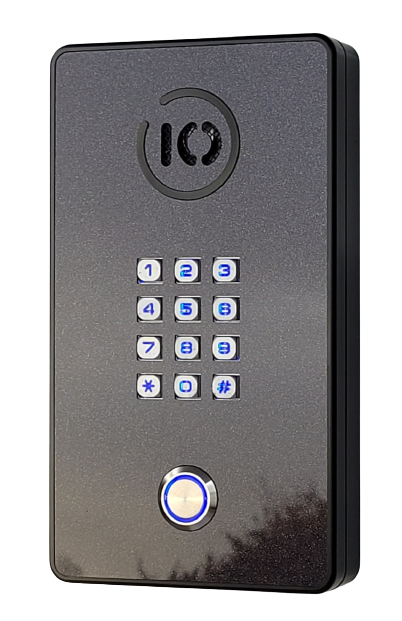

Keypad units offer a fully remotely configurable keypad access control solution programmed by SMS or online.

We're pleased to say our 4G intercom features a fully LTE rel.13 compliant chipset and has been fully tested to work on all UK and Ireland networks.



Materials
 Front Acrylic 3mm
 Base Acetal 16mm
 Mid-Layer Acrylic 10mm
 Seals Closed Cell Foam 1mm
Networks
 Technology 4G+ LTE Rel 13 Cat.1bis, 2G GSM

Electrical
 Voltage 12-24V DC or AC
 Current ~20mA Idle 100mA During Calls
 Relay Max Voltage 50VDC/AC
 Relay Max Current 1A
Memory
 Dial-to-Open 1000 Users
 Keypad Codes 1000 Users




Manufactured in the UK. 5 year warranty.
