4G VoLTE Intercoms

For Electric Gates and Doors

Our 4G VoLTE Intercom has been tested to offer 4G calls and SMS on the following networks

• 3 UK
• EE UK
• Vodafone UK (native network only)
• Vodafone Germany
• Vodafone Ireland
• Bouygues Telecom France



Without VoLTE your intercom will drop back to 2G and 3G for calls and SMS. We expect 2G and 3G voice networks to be shut down in Europe by 2026 meaning only VoLTE tested intercoms will work beyond this date.

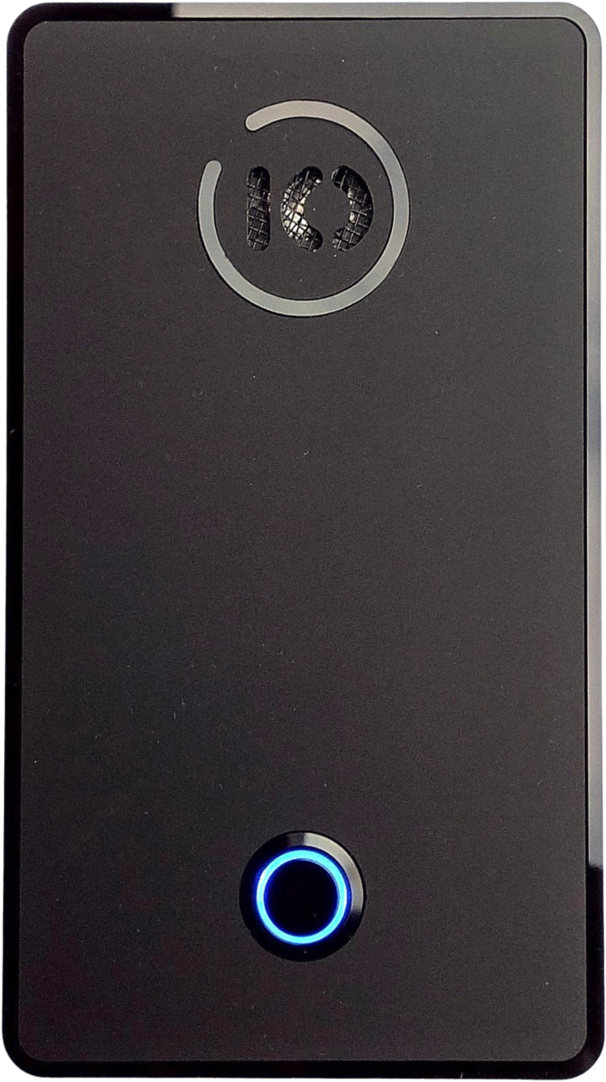

The 4G VoLTE intercom is available in a range of colours and finishes designed to compliment your electric gate installation.

• Entensive Colour Range
• Slim Design (Just 2cm thick)
• High Quality Materials
• Any Mobile Network (including 3)

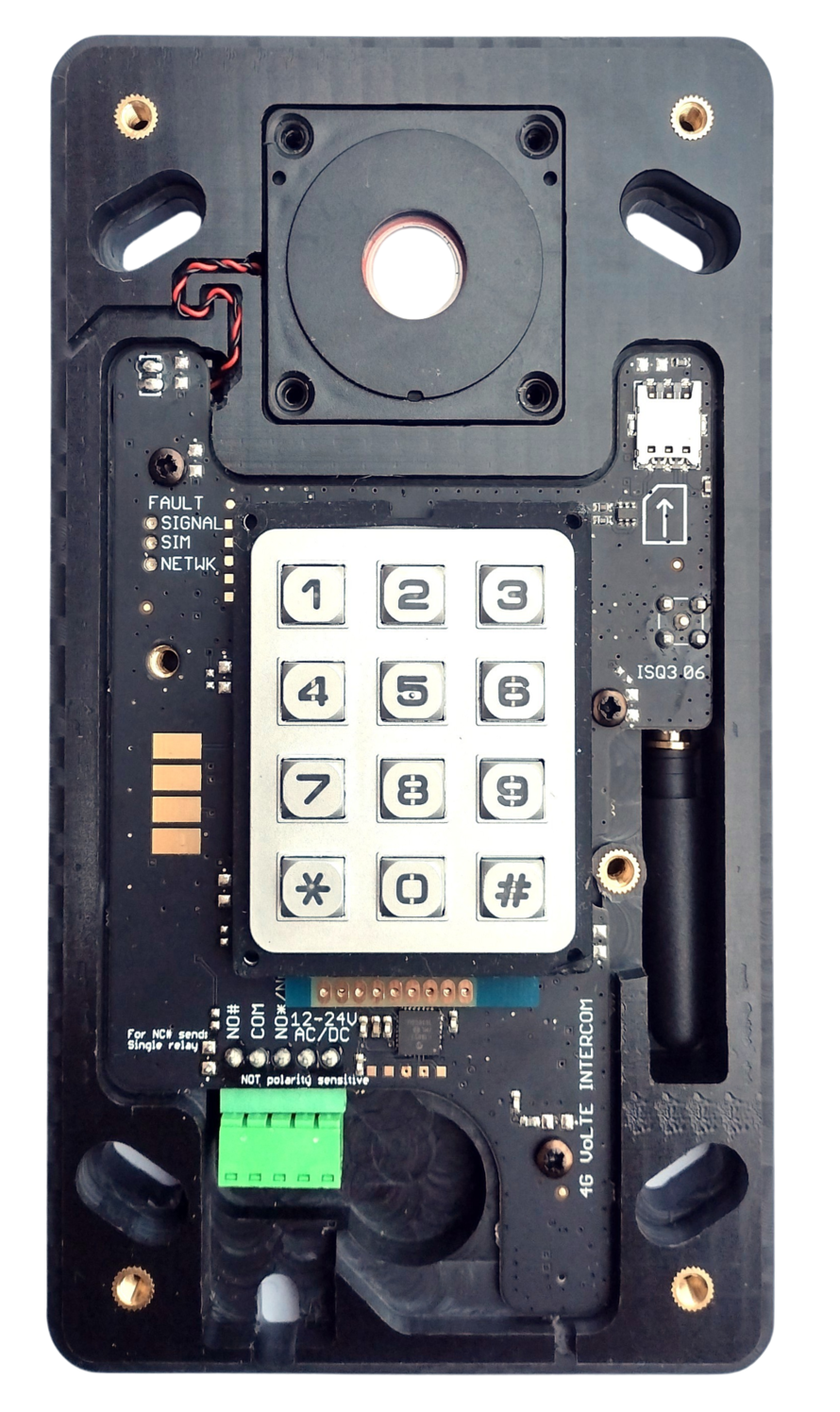

Cellular technology is a complicated business but we've made installation and programming easy with our voice assistance and simple commands. To simplify the physical installation, all iDG intercoms feature an internal aerial to avoid additional cabling and brackets.

• Internal Aerial
• 12-24V AC/DC Power

• Voice Assistance
• 2 Output Relays

• Weatherproof Enclosure
• QR Code Web Setup

Scan the QR code for a demo!

iDG intercoms create a full access control system programmable by SMS or via the iot-portal.com.

• 1000 Phone User Memory
• Dial-to-Open
• 7-day Timer for Regular Opening
• SMS Control and Programming
• Web Portal Access
• Up to 1000 codes Keypad Access

• Keypad Programming by SMS & Online



iDG 4G intercoms allow you to speak to visitors at your property no matter where you are in the world. Using the latest VoLTE 4G audio codecs the audio quality of the calls is superb.
When connected to an electric gate or door, simply pressing a key on your phone during the call grants access to your visitor. You can additionally add up to 1000 phone numbers to the intercom for dial-to-open access control.

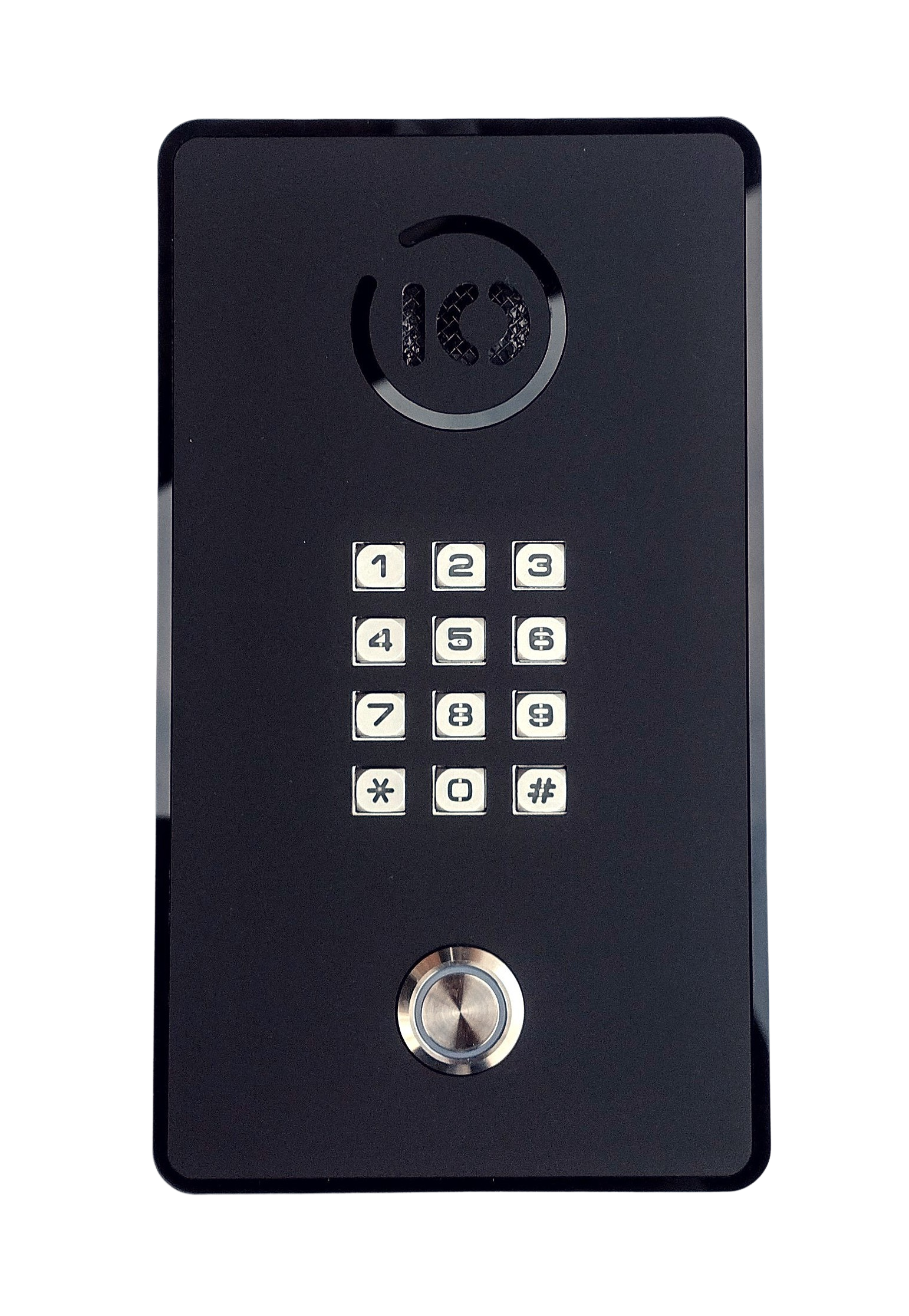

Keypad units offer a fully remotely configurable keypad access control solution programmed by SMS or online.



Access Controllers

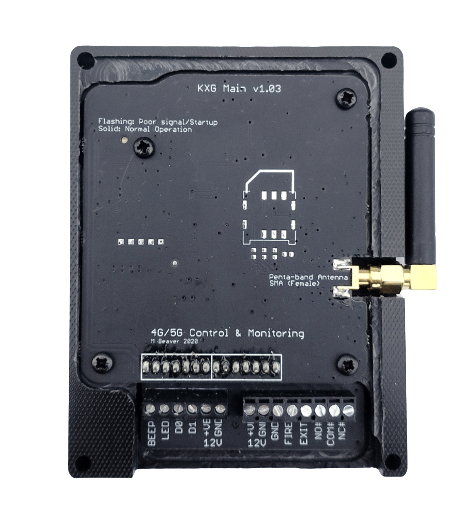

Mini-5G

Our Mini-5G controller is ideal for doors deep within a building or underground



• All UK GSM Networks
• Supports NB-IoT (Vodafone UK)
• Supports LTE-M (O2 & Vodafone UK)
• Pre-paid eSIM
• 12V-24V 100mA max.
• Weigand 26/34bit interface
• Volt-free relay output

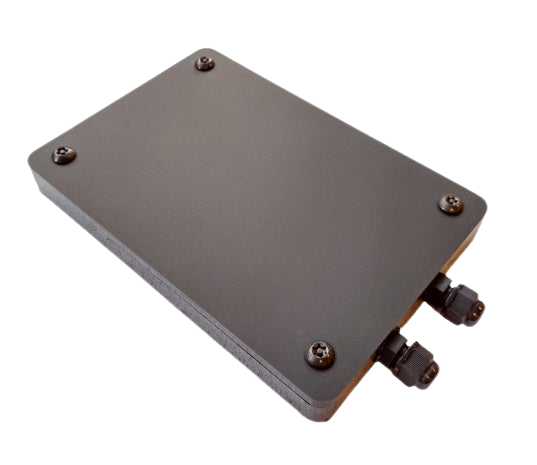

Mini-4G

Our Mini-4G controller is ideal for doors with good signal

Use for doors that require manual opening via the webpage



• All UK Networks and bands
• Support 4G LTE and GSM
• 12V-24V 100mA max.
• Weigand 26/34bit interface
• Volt-free relay output

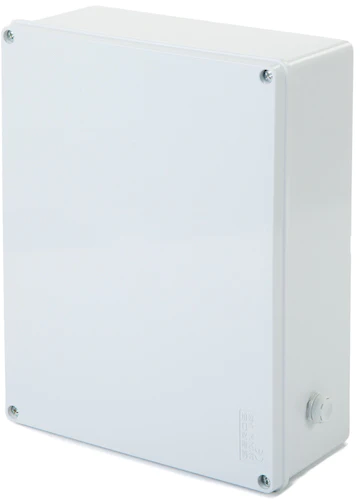

Dual reader 5G controller in Dycon enclosure

Accessories

KR602 Reader

High quality low cost 13.56MHz RFID reader



• 13.56MHz Media
• Keypad
• Weatherproof
• Standard 1-gang pattress

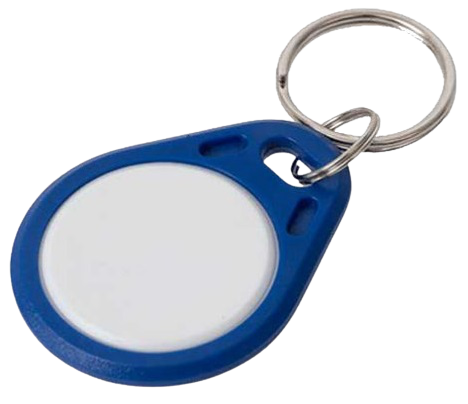

MiFare Fobs

Low cost MiFare tags



• ID code printed on label
• Pre-registered with the portal
• Low cost

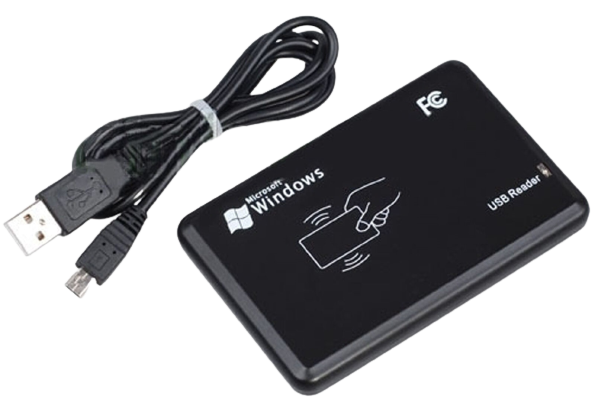

USB Tag Reader

Use the reader to assist in adding tags to the portal



• USB
• No software or drivers required
• Supports Windows



4G & 5G Car Park Management System

Car Park Access Control System for commercial car parks and apartments

Flexible Access Control

• Dial-to-Open Access
• Clickable SMS & Email Links
• QR Code Readers
• Key Tag/Card Readers
• Number Plate Recognition (ANPR) (due Dec 2022)
• 4G Primary Opener
• 5G Backup Opener



About 1 in 500 calls to the dial-to-open system will fail due to temporary network unavailability. This is unavoidable with any dial-to-open system. It lasts about 1-2 minutes. The car park management system features a primary and backup opener giving service during the network time slot renewal periods which gets around this issue. This is essential for busy car parks and apartments.

Manage system either online with a PC or smart phone.

Integration into existing building management system via REST API or MQTT.

Uses 2 independent 4G and 5G control units (primary and backup) for high reliability.

Access to multiple mobile networks for high level redundancy.

Gate open timer alerts.

Gate fault and service notifications.

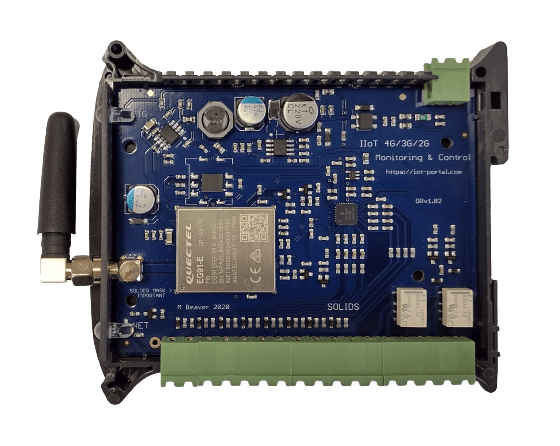

Technical Specification

Networks: LTE(4G) Primary; LTE-M. NB-IoT, 3G, 2G Backup

UK Networks: Vodafone, EE, 3 & O2

Inputs: 16x 0-36V - compatible with volt-free switches or can trigger off set voltages

Outpus: 2x 1A 50V

Enclosure: DIN Rail (RailBox 22mm)

Supply Voltage/Current: 12-24V 0.02A (idle)



Annual Fee

£30
